ITCH22120B2E, ITCH22120B2, High Power RF LDMOS FET

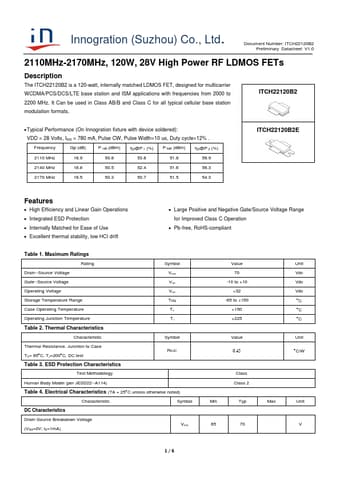

Innogration (Suzhou) Co., Ltd.Document Number: ITCH22120B2 Preliminary Datasheet V1.0 2110MHz-2170MHz, 120W, 28V High Power RF LDMOS FETs Descript.
The ITCH22120B2 is a 120-watt, internally matched LDMOS FET, designed for multicarrier WCDMA/PCS/DCS/LTE base station and ISM applications with freque.

ITCH22120B2-Innogration.pdf

ITCH22120B2E Datasheet Preview — This datasheet PDF includes multiple part numbers: ITCH22120B2E, ITCH22120B2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ITCH22120B2E, ITCH22120B2

Manufacturer:

Innogration

File Size:

882.72 KB

Description:

High Power RF LDMOS FET

Note:

This datasheet PDF includes multiple part numbers: ITCH22120B2E, ITCH22120B2.
Please refer to the document for exact specifications by model.

Features

* High Efficiency and Linear Gain Operations
* Integrated ESD Protection
* Internally Matched for Ease of Use
* Excellent thermal stability, low HCI drift
* Large Positive

Applications

* with frequencies from 2000 to 2200 MHz. It Can be used in Class AB/B and Class C for all typical cellular base station modulation formats. ITCH22120B2
* Typical Performance (On Innogration fixture with device soldered): VDD = 28 Volts, IDQ = 780 mA, Pulse CW, Pulse Width=10 us, Duty cycle=12%
