MX1520C - High Power RF LDMOS FET

MX1520C Description

MX1520C LDMOS TRANSISTOR Document Number: MX1520C Product Datasheet V1.0 200W, 28V High Power RF LDMOS FETs .
The MX1520C is a 200-watt high performance, unmatched LDMOS FET, designed for wide-band commercial and industrial applications with frequencies HF to.

MX1520C Features

* High Efficiency and Linear Gain Operations
* Integrated

MX1520C Applications

* with frequencies HF to 1.5 GHz.
* Typical performance(on 108-512MHz wideband board with device soldered) Signal：Two-tone space 1.6MHz , Vgs=2.75V,Vds=28V, Idq=900mA Freq(MHz) Pin(dBm) Pav(W) Ids(A) Gain(dB) Eff(%) IMD3 48 23 40 4.56 23 31 -30 58 22.2 40 4.3 23.8 33 -32 68 22 40 4

📥 Download Datasheet

Preview of MX1520C PDF

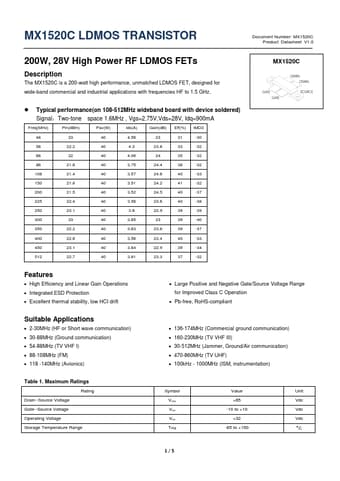

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MX1520C
Manufacturer
Innogration
File Size
406.64 KB
Datasheet
MX1520C-Innogration.pdf
Description
High Power RF LDMOS FET
