ICS7151 Datasheet - Integrated Circuit Systems

Spread Spectrum Clock Generator

ICS7151 Features

* Operating voltage of 3.3 V ±0.3 V Packaged in 8-pin SOIC Available in Pb (lead) free package Input frequency range of 16.5 to 33.4 MHz Output frequency ranges of 8.3 to 16.7 MHz, 16.5 to 33.4 MHz, 33.3 to 66.7 MHz, 66.6 to 133.4 MHz ±1.5% center spre

ICS7151 General Description

The ICS7151-10, -20, -40, and -50 are clock generators for EMI (Electro Magnetic Interference) reduction (see below for frequency ranges and multiplier ratios). Spectral peaks can be attenuated by slightly modulating the oscillation frequency. Both down and center spread profiles are selectable. Dow.

ICS7151 Datasheet (358.39 KB)

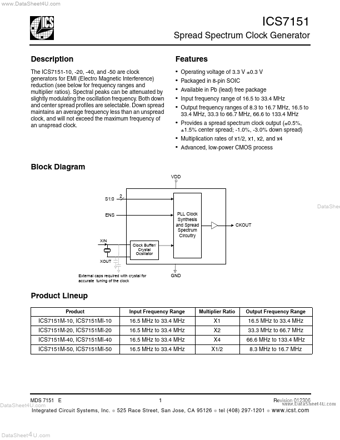

Preview of ICS7151 PDF

Datasheet Details

Part number:

ICS7151

Manufacturer:

Integrated Circuit Systems

File Size:

358.39 KB

Description:

Spread spectrum clock generator.
