ICS7152

SPREAD SPECTRUM CLOCK GENERATOR

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Renesas Electronics Corporation ICS7152M-02 IC SS CLOCK GENERATOR 8SOIC DigiKey 0 0
$0

ICS7152 Datasheet (87.50 KB)

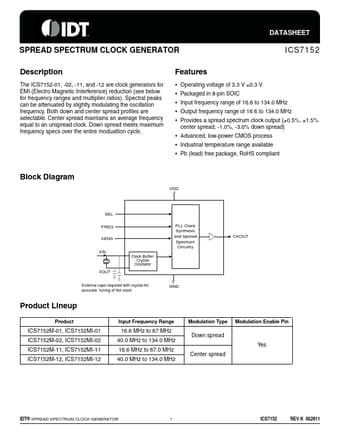

Preview of ICS7152 PDF Datasheet

Datasheet Details

Part number:

ICS7152

Manufacturer:

IDT

File Size:

87.50 KB

Description:

Spread spectrum clock generator

ICS7152 Features

* Operating voltage of 3.3 V ±0.3 V

* Packaged in 8-pin SOIC

* Input frequency range of 16.6 to 134.0 MHz

* Output frequency range of 16.6 to 134.0 MHz

* Provides a spread spectrum clock output (±0.5%, ±1.5% center spread; -1.0%, -3.0% down spread)

* A

ICS7152 General Description

The ICS7152-01, -02, -11, and -12 are clock generators for EMI (Electro Magnetic Interference) reduction (see below for frequency ranges and multiplier ratios). Spectral peaks can be attenuated by slightly modulating the oscillation frequency. Both down and center spread profiles are selectable. Cen.
