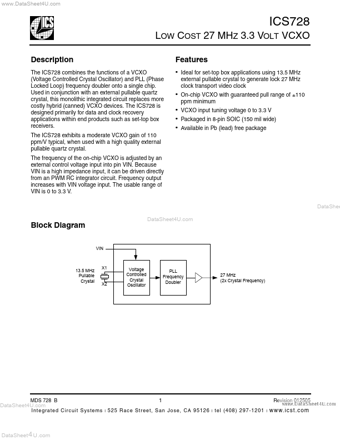

ICS728 VCXO

The ICS728 combines the functions of a VCXO (Voltage Controlled Crystal Oscillator) and PLL (Phase Locked Loop) frequency doubler onto a single chip. Used in conjunction with an external pullable quartz crystal, this monolithic integrated circuit replaces more costly hybrid (canned) VCXO devices. Th.

ICS728 Features

* Ideal for set-top box applications using 13.5 MHz external pullable crystal to generate lock 27 MHz clock transport video clock

* On-chip VCXO with guaranteed pull range of ±110 ppm minimum

* VCXO input tuning voltage 0 to 3.3 V

* Packaged in 8-pin SOIC (150 mil w
