ICS726, VCXO

www.DataSheet4U.com ICS726 12 TO 36 MHZ SOT-23 VCXO .
Used in conjunction with an external pullable quartz crystal, this monolithic integrated circuit replaces more costly hybrid (canned) VCXO devices.

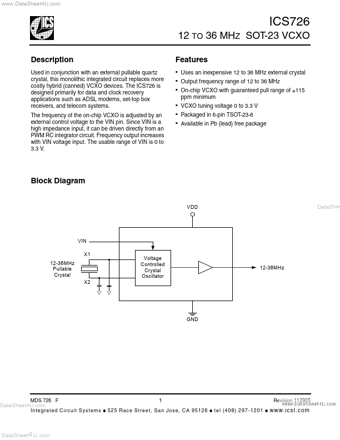

datasheet Preview Page 1 from Datasheet4u.com

ICS726_IntegratedCircuitSystems.pdf

ICS726 Datasheet Preview — Preview of ICS726 PDF

Datasheet Details

Part number:

ICS726

Manufacturer:

Integrated Circuit Systems

File Size:

298.83 KB

Description:

VCXO

Features

* Uses an inexpensive 12 to 36 MHz external crystal
* Output frequency range of 12 to 36 MHz
* On-chip VCXO with guaranteed pull range of ±115 ppm minimum
* VCXO tuning voltage 0 to 3.3 V
* Packaged in 6-pin TSOT-23-6
* Available in Pb (lead) free pac

Applications

* such as ADSL modems, set-top box receivers, and telecom systems. The frequency of the on-chip VCXO is adjusted by an external control voltage to the VIN pin. Since VIN is a high impedance input, it can be driven directly from an PWM RC integrator circuit. Frequency output increases with VIN voltage
