ICS722

VCXO

ICS722 Features

* Packaged in 8-pin SOIC Operational frequency range of 16.2 MHz to 28 MHz Uses an inexpensive external crystal On-chip patented VCXO with pull range of 230 ppm (minimum) VCXO tuning voltage of 0 to 3.3 V Operating voltage

ICS722 General Description

The ICS722 is a low cost, low-jitter, high-performance 3.3 volt VCXO designed to replace expensive discrete VCXOs modules. The on-chip Voltage Controlled Crystal Oscillator accepts a 0 to 3.3 V input voltage to cause the output clocks to vary by over ±100 ppm. Using ICS’ patented VCXO techniques, th.

ICS722 Datasheet (310.66 KB)

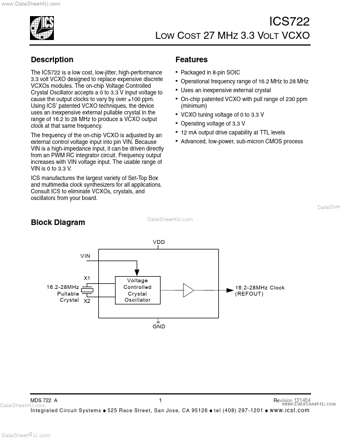

Preview of ICS722 PDF

Datasheet Details

Part number:

ICS722

Manufacturer:

Integrated Circuit Systems

File Size:

310.66 KB

Description:

Vcxo.
