ICS9112-17 Datasheet, Buffer, Integrated Circuit Systems

ICS9112-17 Features

  • Buffer
  • Zero input - output delay Frequency range 25 - 133 MHz (3.3V) High loop filter bandwidth ideal for Spread Spectrum

PDF File Details

Part number:

ICS9112-17

Manufacturer:

Integrated Circuit Systems

File Size:

137.51kb

Download:

📄 Datasheet

Description:

Low skew output buffer. General a The ICS9112-17 is a high performance, low skew, low jitter .D buffer. zero delay It uses a phase lock loop (PLL) w technolo

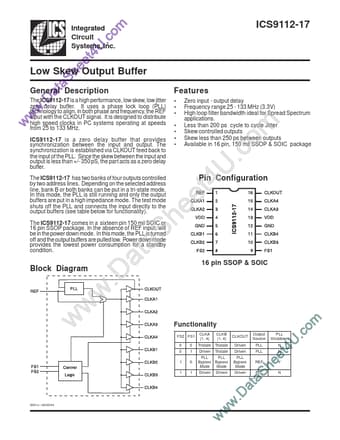

Datasheet Preview: ICS9112-17 📥 Download PDF (137.51kb)
Page 2 of ICS9112-17 Page 3 of ICS9112-17

ICS9112-17 Application

  • Applications Less than 200 ps cycle to cycle Jitter Skew controlled outputs Skew less than 250 ps between outputs Available in 16 pin, 150 mil SSOP
