ICS952004 Programmable Timing Control Hub for P4 processor

The ICS952004 is a two chip clock solution for desktop designs using SIS 645/650 style chipsets. When used with a zero delay buffer such as the ICS9179-06 for PC133 or the ICS93705 for DDR applications it provides all the necessary clocks signals for such a system. The ICS952004 is part of a whole n.

ICS952004 Features

* 2 - Pairs of differential CPUCLKs (differential current mode)

* 1 - SDRAM @ 3.3V

* 8 - PCI @3.3V

* 2 - AGP @ 3.3V

* 2 - ZCLKs @ 3.3V

* 1- 48MHz, @3.3V fixed.

* 1- 24/48MHz, @3.3V selectable by I2C (Default is 24MHz)

* 3- REF @3.3V, 1

ICS952004_IntegratedCircuitSystems.pdf

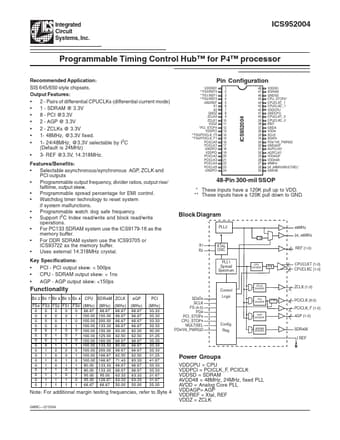

ICS952004 Datasheet Preview — Preview of ICS952004 PDF
