ICS952607 Programmable Timing Control Hub for Next Gen P4 processor

PIN # 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 PIN NAME *FS1/REF0 *FS0/REF1 REF2 VDDREF X1 X2 GND * *FS2/PCICLK_F0 * *FS4/PCICLK_F1 PCICLK_F2 VDDPCI GND ^^PCICLK0 PCICLK1 PCICLK2 PCICL.

ICS952607 Features

* 2 - 0.7V current-mode differential CPU pairs

* 1 - 0.7V current-mode differential SRC pair

* 9 - PCI, 3 free running, 33MHz

* 3 - REF, 14.318MHz

* 3 - 3V66, 66.66MHz

* 1 - VCH/3V66, selectable 48MHz or 66MHz

* 2 - 48MHz

* 1 - 24/48MH

ICS952607 Datasheet (214.23 KB)

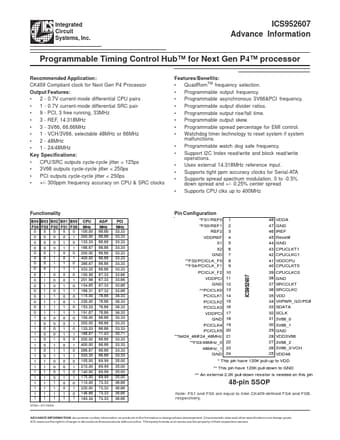

ICS952607 Datasheet Preview — Preview of ICS952607 PDF
