ICS952623 Datasheet - ICS

ICS952623 Programmable Timing Control Hub

PIN # 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PIN NAME REF0 REF1 VDDREF X1 X2 GND PCICLK_F0 PCICLK_F1 PCICLK_F2 VDDPCI GND PCICLK0 PCICLK1 PCICLK2 PCICLK3 VDDPCI GND PCICLK4 PCICLK5 PCICLK6 PIN TYPE OUT OUT PWR IN OUT PWR OUT OUT OUT PWR PWR OUT OUT OUT OUT PWR PWR OUT OUT OUT DESCRIPTION.

ICS952623 Features

* 3 - 0.7V current-mode differential CPU pairs

* 1 - 0.7V current-mode differential SRC pair

* 7 - PCI (33MHz)

* 3 - PCICLK_F, (33MHz) free-running

* 1 - USB, 48MHz

* 1 - DOT, 48MHz

* 2 - REF, 14.318MHz

* 4 - 3V66, 66.66MHz

* 1

ICS952623 Datasheet (374.14 KB)

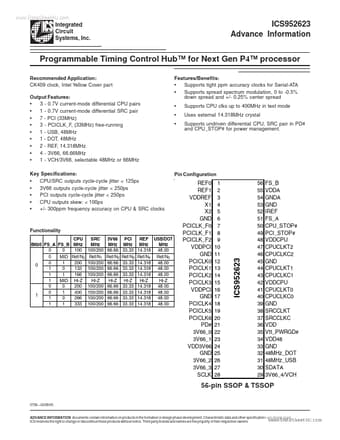

ICS952623 Datasheet Preview — Preview of ICS952623 PDF

Datasheet Details

Part number:

ICS952623

Manufacturer:

ICS

File Size:

374.14 KB

Description:

Programmable timing control hub.
