ICS952621 Programmable Timing Control Hub

PIN # 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 PIN NAME FS_A/REF1 FS_B/REF0 VDDREF X1 X2 GND PCICLK_F0 PCICLK_F1 PCICLK_F2 VDDPCI GND PCICLK0 PCICLK1 PCICLK2 PCICLK3 VDDPCI GND PCICLK4 PCICLK5 PD# 48MHz_DOT.

ICS952621 Features

* 2 - 0.7V current-mode differential CPU pairs

* 1 - 0.7V current-mode differential CPU pairs for ITP

* 1 - 0.7V current-mode differential SRC pair

* 9 - PCI (33MHz), including 3 free running PCI

* 1 - USB, 48MHz

* 1 - DOT, 48MHz

* 2 - REF, 14

ICS952621 Datasheet (240.09 KB)

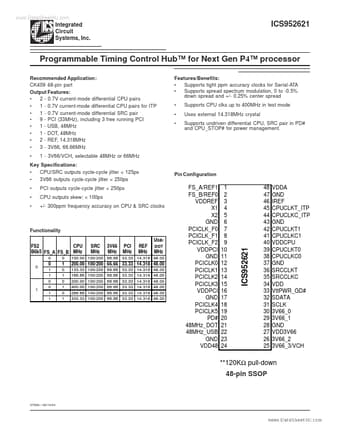

ICS952621 Datasheet Preview — Preview of ICS952621 PDF
