MK2011 Datasheet - Integrated Circuit Systems

MK2011 - Fast Ethernet Clock Source

The MK2011 is the ideal way to generate clocks for Fast Ethernet cards or systems. It provides 20MHz, 25MHz, and 50MHz clocks. In an 8 pin SOIC, the MK2011 can save component count, board space, and cost over surface mount crystals and oscillators, and increase reliability by eliminating two or thre.

MK2011 Features

* Packaged in 8 pin SOIC

* Input crystal or clock frequency of 20.00 MHz

* Lowest jitter in the industry reliably clocks sensitive Ethernet devices.

* Output clock frequencies of 20.00 MHz, 25.00 MHz, and 50.00 MHz

* 25mA drive capability at TTL levels

MK2011_IntegratedCircuitSystems.pdf

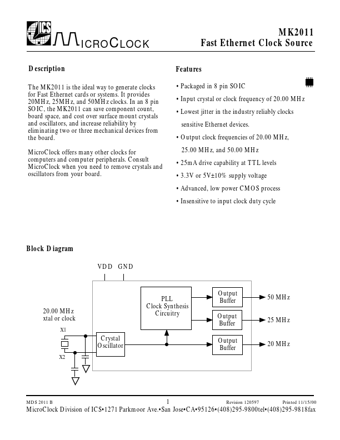

Preview of MK2011 PDF
MK2011 Datasheet Preview Page 2 MK2011 Datasheet Preview Page 3

Datasheet Details

Part number:

MK2011

Manufacturer:

Integrated Circuit Systems

File Size:

65.39 KB

Description:

Fast ethernet clock source.
