MK2014A - Fast Ethernet Clock Source

Integrated Circuit Systems

MK2014A Description

I C R O C LOC K .
The MK2014A is the ideal way to generate clocks for Fast Ethernet cards or systems.

MK2014A Features

* Packaged in 8 pin SOIC
* Input crystal or clock frequency of 14.318 MHz
* Lowest jitter in the industry reliably clocks sensitive Ethernet devices.
* Output clock frequencies of 20.00 MHz and 25.00 MHz
* Zero ppm synthesis error in the output clocks

MK2014A Applications

* Any other applications such as those requiring extended temperature range, high reliability, or other extraordinary environmental requirements are not recommended without additional processing by ICS. ICS reserves the right to change any circuitry or specifications without notice. ICS does not auth

📥 Download Datasheet

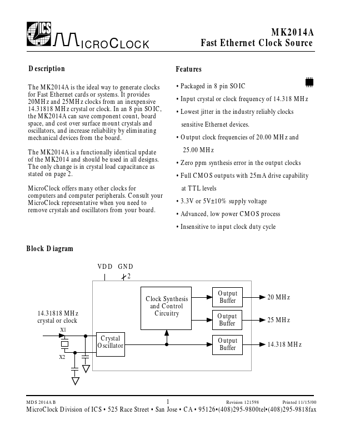

MK2014A Datasheet Preview — Preview of MK2014A PDF

Datasheet Details

Part number: MK2014A
Manufacturer: Integrated Circuit Systems
File Size: 44.43 KB
Datasheet: MK2014A_IntegratedCircuitSystems.pdf
Description: Fast Ethernet Clock Source
