ICS854S054I Datasheet, Multiplexer, Integrated Device Technology

ICS854S054I Features

  • Multiplexer
  • High speed 4:1 differential multiplexer
  • One differential LVDS output pair
  • Four selectable differential PCLK, nPCLK input pairs
  • PCLKx, nPCLKx pair

PDF File Details

Part number:

ICS854S054I

Manufacturer:

Integrated Device Technology

File Size:

1.15MB

Download:

📄 Datasheet

Description:

4:1 differential-to-lvds clock multiplexer. The ICS854S054I is a 4:1 Differential-to-LVDS Clock Multiplexer which can operate up to 2.5GHz. The ICS854S054I has 4 selectable diff

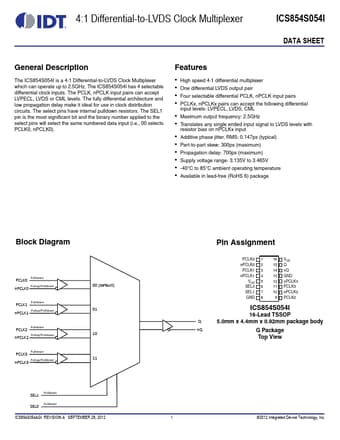

Datasheet Preview: ICS854S054I 📥 Download PDF (1.15MB)
Page 2 of ICS854S054I Page 3 of ICS854S054I

ICS854S054I Application

  • Applications Phase noise is defined as the ratio of the noise power present in a 1Hz band at a specified offset from the fundamental frequency to t
