ICS85401 - 2:1 DIFFERENTIAL-TO-LVDS MULTIPLEXER

ICS85401 Description

Integrated Circuit Systems, Inc.ICS85401 2:1 DIFFERENTIAL-TO-LVDS MULTIPLEXER .
The ICS85401 is a high performance 2:1 Differential-to-LVDS Multiplexer and a member of the HiPerClockS™ HiPerClockS™ family of High Performance Clock.

ICS85401 Features

* 2:1 LVDS MUX
* 1 LVDS output
* 2 differential clock inputs can accept: LVPECL, LVDS, CML
* Maximum input/output frequency: >2.5GHz
* Translates LVCMOS/LVTTL input signals to LVDS levels by using a resistor bias network on nCLK0, nCLK1
* Propagation d

ICS85401 Applications

* the maximum input voltage for CLKx, nCLKx is VDD + 0.3V. 85401AK www. icst. com/products/hiperclocks. html 3 REV. A FEBRUARY 22, 2005 Integrated Circuit Systems, Inc. ICS85401 2:1 DIFFERENTIAL-TO-LVDS MULTIPLEXER Test Conditions Minimum 200 1.05 Typical 350 1.15 Maximum 500 50 1.25 50 Units mV mV

📥 Download Datasheet

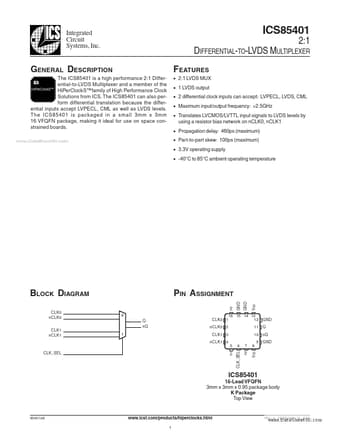

Preview of ICS85401 PDF
