ICS85408 Datasheet, Chip, Integrated Circuit Systems

ICS85408 Features

  • Chip
  • 8 Differential LVDS outputs
  • CLK, nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, SSTL, HCSL
  • Maximum output frequency: 7

PDF File Details

Part number:

ICS85408

Manufacturer:

Integrated Circuit Systems

File Size:

206.93kb

Download:

📄 Datasheet

Description:

To-8 differential-to-lvds clock distribution chip. The ICS85408 is a low skew, high performance 1-to-8 Differential-to-LVDS Clock Distribution HiPerClockS™ Chip and a member of the HiP

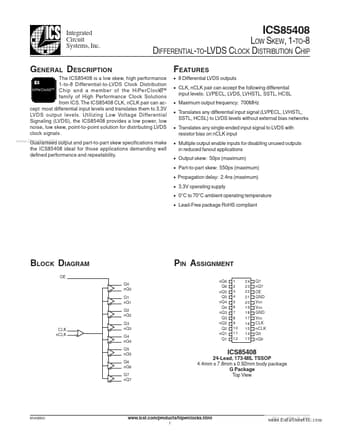

Datasheet Preview: ICS85408 📥 Download PDF (206.93kb)
Page 2 of ICS85408 Page 3 of ICS85408

ICS85408 Application

  • Applications
  • Output skew: 50ps (maximum)
  • Part-to-part skew: 550ps (maximum)
  • Propagation delay: 2.4ns (maximum)

TAGS

ICS85408
TO-8
DIFFERENTIAL-TO-LVDS
CLOCK
DISTRIBUTION
CHIP
Integrated Circuit Systems
