ICS8546-01 Datasheet - Renesas

ICS8546-01 Crystal-to-LVDS Fanout Buffer

The ICS8546-01 is a low skew, high performance 1-to-6 Crystal Oscillator-to-LVDS Fanout Buffer. The ICS8546-01 has selectable crystal, single ended or differential clock inputs. The single-ended clock input accepts LVCMOS or LVTTL input levels and translate them to LVDS levels. The CLK1, nCLK1 pair .

ICS8546-01 Features

* Six 3.3V or 2.5V LVDS outputs

* Selectable crystal oscillator, differential CLK1, nCLK1 pair or LVCMOS/LVTTL clock input

* CLK1, nCLK1 pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, HCSL

* Maximum output frequency: 266MHz

* Cr

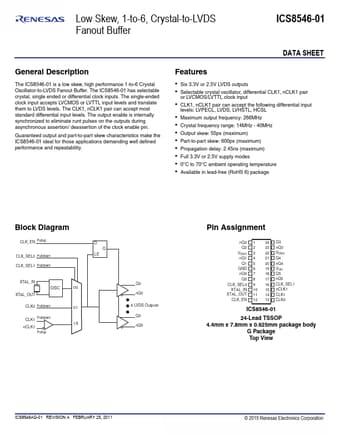

ICS8546-01-Renesas.pdf

ICS8546-01 Datasheet Preview — Preview of ICS8546-01 PDF

Datasheet Details

Part number:

ICS8546-01

Manufacturer:

Renesas ↗

File Size:

1.16 MB

Description:

Crystal-to-lvds fanout buffer.
