ICS854058AG - DIFFERENTIAL-TO-LVDS CLOCK MULTIPLEXER

Product Overview

Integrated Circuit Systems

Datasheet Details

Part number	ICS854058AG
Manufacturer	Integrated Circuit Systems
File Size	174.63 KB
Description	DIFFERENTIAL-TO-LVDS CLOCK MULTIPLEXER
Datasheet	ICS854058AG Datasheet

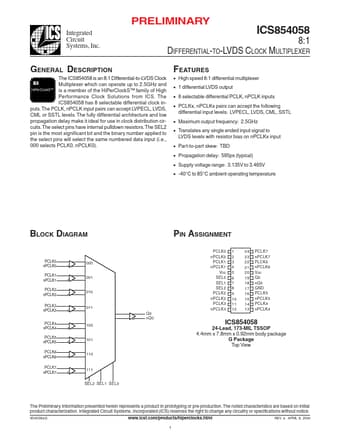

Additional preview pages of the ICS854058AG datasheet.

Product details

Description

The ICS854058 is an 8:1 Differential-to-LVDS Clock Multiplexer which can operate up to 2.5GHz and HiPerClockS™ is a member of the HiPerClockS™ family of High Performance Clock Solutions from ICS.

Features

High speed 8:1 differential multiplexer.
1 differential LVDS output.
8 selectable differential PCLK, nPCLK inputs.
PCLKx, nPCLKx pairs can accept the following differential input levels: LVPECL, LVDS, CML, SSTL.
Maximum output frequency: 2.5GHz.
Translates any single ended input signal to LVDS levels with resistor bias on nPCLKx input.
Part-to-part skew: TBD.
Propagation delay: 595ps (typical).
Supply voltage range.
