ICS85411 - 1-TO-2 DIFFERENTIAL-TO-LVDS FANOUT BUFFER

ICS85411 Description

Integrated Circuit Systems, Inc.ICS85411 LOW SKEW, 1-TO-2 DIFFERENTIAL-TO-LVDS FANOUT BUFFER .
The ICS85411 is a low skew, high performance 1-to-2 Differential-to-LVDS Fanout Buffer and a HiPerClockS™ member of the HiPerClockS™family of High Per.

ICS85411 Features

* 2 differential LVDS outputs
* 1 differential CLK, nCLK clock input
* CLK, nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, SSTL, HCSL
* Maximum output frequency: 650MHz
* Translates any single ended input signal to LVDS lev

ICS85411 Applications

* demanding well defined performance and repeatability. ICS www. DataSheet4U. com BLOCK DIAGRAM CLK nCLK Q0 nQ0 Q1 nQ1 PIN ASSIGNMENT Q0 nQ0 Q1 nQ1 1 2 3 4 8 7 6 5 VDD CLK nCLK GND ICS85411 8-Lead SOIC 3.90mm x 4.90mm x 1.37mm package body M Package Top View 85411AM www. icst. com/products/hiperclo

📥 Download Datasheet

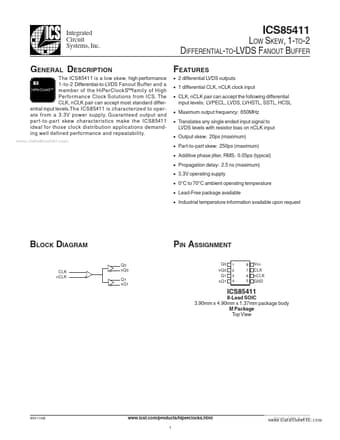

Preview of ICS85411 PDF
