ICS854054 - 4:1 DIFFERENTIAL-TO-LVDS CLOCK MULTIPLEXER

Product Overview

Integrated Circuit Systems

Datasheet Details

Part number	ICS854054
Manufacturer	Integrated Circuit Systems
File Size	226.87 KB
Description	4:1 DIFFERENTIAL-TO-LVDS CLOCK MULTIPLEXER
Datasheet	ICS854054 Datasheet

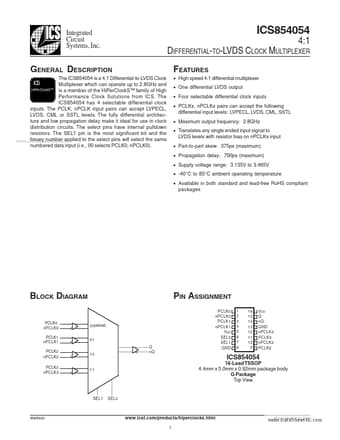

Additional preview pages of the ICS854054 datasheet.

Product details

Description

The ICS854054 is a 4:1 Differential-to-LVDS Clock Multiplexer which can operate up to 2.8GHz and HiPerClockS™ is a member of the HiPerClockS™ family of High Performance Clock Solutions from ICS.

Features

High speed 4:1 differential multiplexer.
One differential LVDS output.
Four selectable differential clock inputs.
PCLKx, nPCLKx pairs can accept the following differential input levels: LVPECL, LVDS, CML, SSTL.
Maximum output frequency: 2.8GHz.
Translates any single ended input signal to LVDS levels with resistor bias on nPCLKx input.
Part-to-part skew: 375ps (maximum).
Propagation delay: 700ps (maximum).
Supply vo.
