ICS85454-01 - DUAL 2:1/1:2 DIFFERENTIAL-TO-LVDS MULTIPLEXER

ICS85454-01 Description

Integrated Circuit Systems, Inc.ICS85454-01 DUAL 2:1/1:2 DIFFERENTIAL-TO-LVDS MULTIPLEXER .
The ICS85454-01 is a 2:1/1:2 Multiplexer and a member of the HiPerClockSTM family of high HiPerClockS™ performance clock solutions from ICS.

ICS85454-01 Features

* Dual 2:1/1:2 MUX
* Three LVDS outputs
* Three differential inputs
* Differential inputs can accept the following differential levels: LVPECL, LVDS, CML
* Loopback test mode available
* Maximum output frequency: 2.5GHz
* Part-to-part skew: 250

ICS85454-01 Applications

* requiring very high performance and has a maximum operating frequency in 2.5GHz. The device is packaged in a small, 3mm x 3mm VFQFN package, making it ideal for use on space-constrained boards. BLOCK DIAGRAM SELB PIN ASSIGNMENT SELA nQB VDD QB INA0 nINA0 QA0 1 nQA0 2 INB nINB 16 15 14 13 12 11 1

📥 Download Datasheet

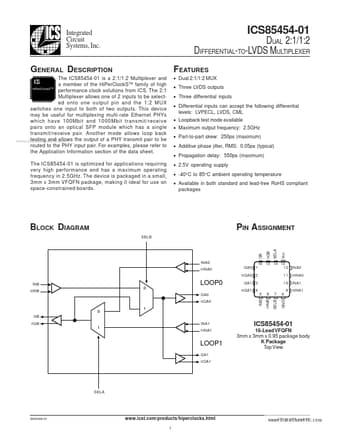

Preview of ICS85454-01 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICS85454-01
Manufacturer
Integrated Circuit Systems
File Size
225.70 KB
Datasheet
ICS85454-01_IntegratedCircuitSystems.pdf
Description
DUAL 2:1/1:2 DIFFERENTIAL-TO-LVDS MULTIPLEXER
