ICS8545-02 - 1-TO-4 LVCMOS/LVTTL-TO-LVDS FANOUT BUFFER

ICS8545-02 Description

LOW SKEW, 1-TO-4 LVCMOS/LVTTL-TO-LVDS FANOUT BUFFER ICS8545-02 .
The ICS8545-02 is a low skew, high performance 1-to-4 LVCMOS/LVTTL-to-LVDS Clock Fanout HiPerClockS™ Buffer and a member of the HiPerClockS™ family of.

ICS8545-02 Applications

* Maximum output frequency: 350MHz Translates LVCMOS/LVTTL input signals to LVDS levels Output skew: 60ps (maximum) Part-to-part skew: 450ps (maximum) Propagation delay: 1.45ns (maximum) Additive phase jitter, RMS: 0.14ps (typical) Full 3.3Vsupply mode 0°C to 70°C ambient operating temperature Availab

📥 Download Datasheet

Preview of ICS8545-02 PDF

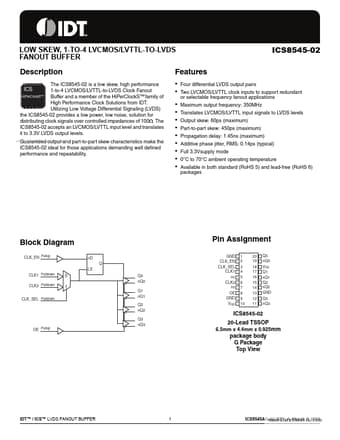

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICS8545-02
Manufacturer
Integrated Device Technology
File Size
725.71 KB
Datasheet
ICS8545-02_IntegratedDeviceTechnology.pdf
Description
1-TO-4 LVCMOS/LVTTL-TO-LVDS FANOUT BUFFER
