IDT723642

CMOS Bidirectional SyncFIFO memory

IDT723642 Features

* Free-running CLKA and CLKB may be asynchronous or coincident (simultaneous reading and writing of data on a single clock edge is permitted)

* Two independent clocked FIFOs buffering data in opposite directions

* Memory storage capacity: IDT723622

* 256 x 36 x 2 IDT72

IDT723642 General Description

The IDT723622/723632/723642 is a monolithic, high-speed, low-power, CMOS Bidirectional SyncFIFO (clocked) memory which supports clock frequencies up to 67MHz and have read access times as fast as 11ns. Two independent 256/512/ 1024x36 dual-port SRAM FIFOs on board each chip buffer data in opposite .

IDT723642 Datasheet (175.39 KB)

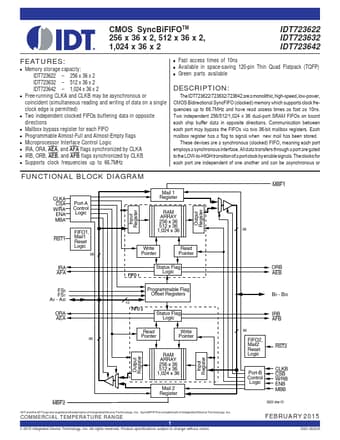

Preview of IDT723642 PDF

Datasheet Details

Part number:

IDT723642

Manufacturer:

Integrated Device Technology

File Size:

175.39 KB

Description:

Cmos bidirectional syncfifo memory.
