IDT723652 - (IDT7236x2) CMOS SyncBiFIFO

IDT723652 Product details

Description

The IDT723652/723662/723672 is a monolithic, high-speed, low-power, CMOS Bidirectional SyncFIFO (clocked) memories which support clock frequencies up to 83MHz and have read access times as fast as 8ns..

Features

  • Memory storage capacity: IDT723652.
  • 2,048 x 36 x 2 IDT723662.
  • 4,096 x 36 x 2 IDT723672.
  • 8,192 x 36 x 2 Supports clock frequencies up to 83MHz Fast access times of 8ns Free-running CLKA and CLKB may be asynchronous or coincident (simultaneous reading and writing of data on a single clock edge is permitted) Two independent clocked FIFOs buffering data in oppo.

📥 Download Datasheet

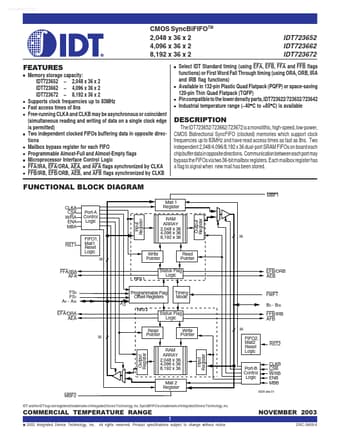

Preview of IDT723652 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IDT723652
Manufacturer
IDT
File Size
283.67 KB
Datasheet
IDT723652_IDT.pdf
Description
(IDT7236x2) CMOS SyncBiFIFO
