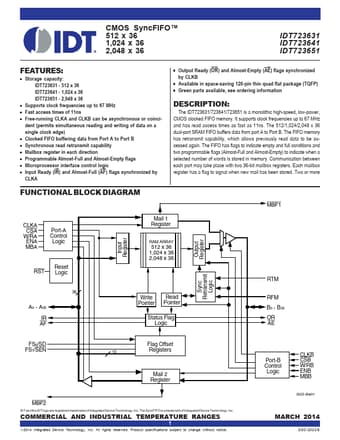

IDT723651 Datasheet Preview — Preview of IDT723651 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IDT723651
Manufacturer: Integrated Device Technology
File Size: 321.97 KB
Datasheet: IDT723651_IntegratedDeviceTechnology.pdf
Description: CMOS clocked FIFO memory

IDT723651 Product details

Description

The IDT723631/723641/723651 is a monolithic highspeed, low-power, CMOS clocked FIFO memory.

Features

Free-running CLKA and CLKB can be asynchronous or coincident (permits simultaneous reading and writing of data on a single clock edge).
Clocked FIFO buffering data from Port A to Port B.
Storage capacity: IDT723631 - 512 x 36 IDT723641 - 1024 x 36 IDT723651 - 2048 x 36.
Synchronous read retransmit capability.
Mailbox register in each direction.
Programmable Almost-Full and Almost-Empty flags.
Microprocessor interface control logic.
