IDT723654 - (IDT7236x4) CMOS SyncBiFIFO

IDT

📥 Download Datasheet

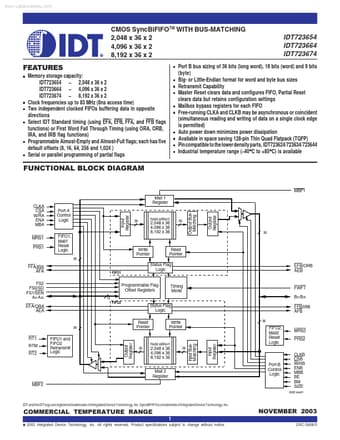

IDT723654 Datasheet Preview — Preview of IDT723654 PDF

Datasheet Details

Part number: IDT723654
Manufacturer: IDT
File Size: 421.33 KB
Datasheet: IDT723654_IDT.pdf
Description: (IDT7236x4) CMOS SyncBiFIFO

IDT723654 Product details

Description

The IDT723654/723664/723674 is a monolithic, high-speed, low-power, CMOS bidirectional synchronous (clocked) FIFO memory which supports clock frequencies up to 83 MHz and has read access times as fast as 8ns.

Features

Memory storage capacity: IDT723654.
2,048 x 36 x 2 IDT723664.
4,096 x 36 x 2 IDT723674.
8,192 x 36 x 2 Clock frequencies up to 83 MHz (8ns access time) Two independent clocked FIFOs buffering data in opposite directions Select IDT Standard timing (using EFA, EFB, FFA, and FFB flags functions) or First Word Fall Through Timing (using ORA, ORB, IRA,.
