IDT723622 - CMOS Bidirectional SyncFIFO memory

Integrated Device Technology

📥 Download Datasheet

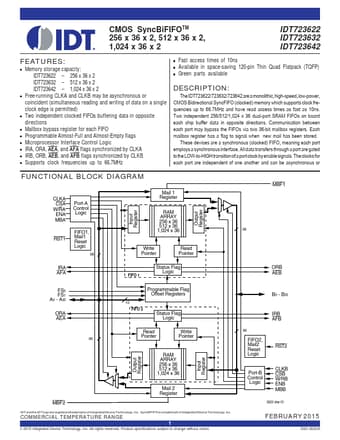

IDT723622 Datasheet Preview — Preview of IDT723622 PDF

Datasheet Details

Part number: IDT723622
Manufacturer: Integrated Device Technology
File Size: 190.04 KB
Datasheet: IDT723622_IntegratedDeviceTechnology.pdf
Description: CMOS Bidirectional SyncFIFO memory

IDT723622 Product details

Description

The IDT723622/723632/723642 is a monolithic, high-speed, low-power, CMOS Bidirectional SyncFIFO (clocked) memory which supports clock frequencies up to 67MHz and have read access times as fast as 11ns.

Features

Free-running CLKA and CLKB may be asynchronous or coincident (simultaneous reading and writing of data on a single clock edge is permitted).
Two independent clocked FIFOs buffering data in opposite directions.
Memory storage capacity: IDT723622.
256 x 36 x 2 IDT723632.
512 x 36 x 2 IDT723642.
1024 x 36 x 2.
Mailbox bypass register for each FIFO.
Programmable Almost-Full and Almost-Empty flags.
Microprocessor Interface C.
