IDT723624 Datasheet - Integrated Device Technology

IDT723624 - CMOS bidirectional synchronous (clocked) FIFO memory

The IDT723624/723634/723644 is a monolithic, high-speed, lowpower, CMOS bidirectional synchronous (clocked) FIFO memory which supports clock frequencies up to 83 MHz and has read access times as fast as 8 ns. Two independent 256/512/1,024 x 36 dual-port SRAM FIFOs on board each chip buffer data in .
www.DataSheet4U.com CMOS SyncBiFIFOTM WITH BUS-MATCHING 256 x 36 x 2, 512 x 36 x 2, 1,024 x 36 x 2 .EATURES: IDT723624 IDT723634 IDT723644 Memory storage capacity: IDT723624 256 x 36 x 2 IDT723634 512 x 36 x 2 IDT723644 1,024 x 36 x 2 Clock frequencies up to 83 MHz (8 ns access time) Two independent clocked FIFOs buffering data in opposite directions Se.

IDT723624 Features

* ant byte or word on Port A is read from Port B first (A-to-B data flow) or written to Port B

IDT723624_IntegratedDeviceTechnology.pdf

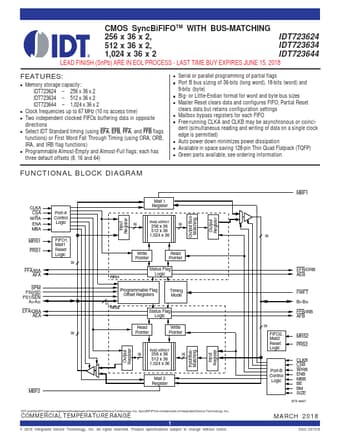

Preview of IDT723624 PDF
IDT723624 Datasheet Preview Page 2 IDT723624 Datasheet Preview Page 3

Datasheet Details

Part number:

IDT723624

Manufacturer:

Integrated Device Technology

File Size:

247.91 KB

Description:

Cmos bidirectional synchronous (clocked) fifo memory.
