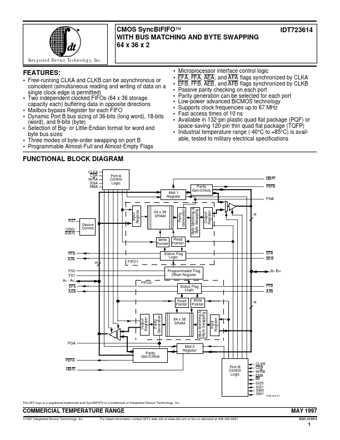

IDT723614 Datasheet Preview — Preview of IDT723614 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IDT723614
Manufacturer: Integrated Device Technology
File Size: 499.04 KB
Datasheet: IDT723614_IntegratedDeviceTechnology.pdf
Description: CMOS SyncBiFIFO

IDT723614 Product details

Description

The IDT723614 is a monolithic, high-speed, low-power BiCMOS bidirectional clocked FIFO memory.

Features

Free-running CLKA and CLKB can be asynchronous or coincident (simultaneous reading and writing of data on a single clock edge is permitted).
Two independent clocked FIFOs (64 x 36 storage capacity each) buffering data in opposite directions.
Mailbox bypass Register for each FIFO.
Dynamic Port B bus sizing of 36-bits (long word), 18-bits (word), and 9-bits (byte).
Selection of Big- or Little-Endian format for word and byte bus sizes.
Three m.
