IDT723611

CMOS SyncFIFO

IDT723611 Features

* Free-running CLKA and CLKB may be asynchronous or coincident (permits simultaneous reading and writing of data on a single clock edge)

* 64 x 36 storage capacity

* Synchronous data buffering from Port A to Port B

* Mailbox bypass register in each direction

IDT723611 General Description

The IDT723611 is a monolithic, high-speed, low-power, CMOS Synchronous (clocked) FIFO memory which supports clock frequencies up to 67MHz and has read access times as fast as 10ns. The 64 x 36 dual-port FIFO buffers data from Port A to Port B. The FIFO has flags to indicate empty and full condition.

IDT723611 Datasheet (236.91 KB)

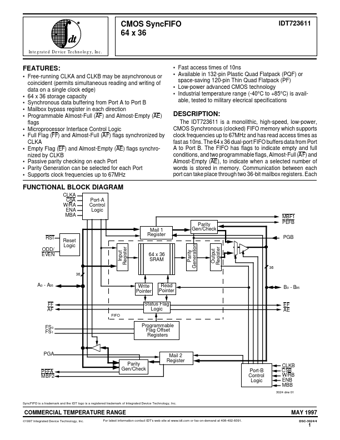

Preview of IDT723611 PDF

Datasheet Details

Part number:

IDT723611

Manufacturer:

Integrated Device Technology

File Size:

236.91 KB

Description:

Cmos syncfifo.
