IDT723613 - CMOS Clocked FIFO

Integrated Device Technology

📥 Download Datasheet

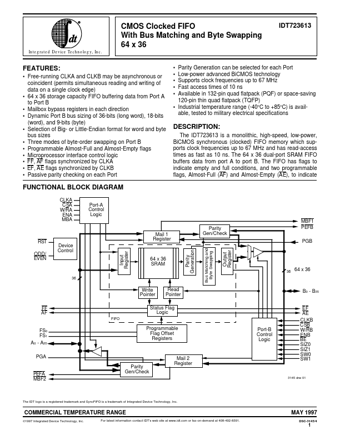

IDT723613 Datasheet Preview — Preview of IDT723613 PDF

Datasheet Details

Part number: IDT723613
Manufacturer: Integrated Device Technology
File Size: 342.36 KB
Datasheet: IDT723613_IntegratedDeviceTechnology.pdf
Description: CMOS Clocked FIFO

IDT723613 Product details

Description

The IDT723613 is a monolithic, high-speed, low-power, BiCMOS synchronous (clocked) FIFO memory which supports clock frequencies up to 67 MHz and has read-access times as fast as 10 ns.

Features

Free-running CLKA and CLKB may be asynchronous or coincident (permits simultaneous reading and writing of data on a single clock edge).
64 x 36 storage capacity FIFO buffering data from Port A to Port B.
Mailbox bypass registers in each direction.
Dynamic Port B bus sizing of 36-bits (long word), 18-bits (word), and 9-bits (byte).
Selection of Big- or Little-Endian format for word and byte bus sizes.
Three modes of byte-order swapping on Po.
