IDT72V3693, IDT72V36103 - 3.3 VOLT CMOS SyncFIFO

Integrated Device Technology

📥 Download Datasheet

IDT72V3693 Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT72V3693, IDT72V36103. Please refer to the document for exact specifications by model.

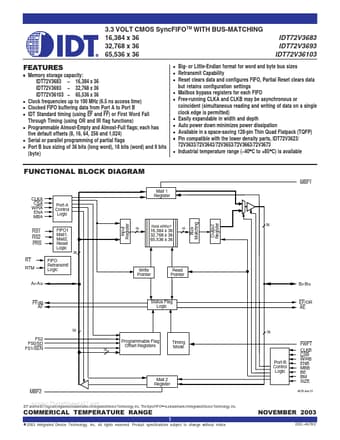

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IDT72V3693, IDT72V36103
Manufacturer	Integrated Device Technology
File Size	348.15 KB
Description	3.3 VOLT CMOS SyncFIFO
Datasheet	IDT72V36103_IntegratedDeviceTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: IDT72V3693, IDT72V36103. Please refer to the document for exact specifications by model.

IDT72V3693 Product details

Description

The IDT72V3683/72V3693/72V36103 are designed to run off a 3.3V supply for exceptionally low power consumption.

Features

Memory storage capacity: IDT72V3683.
16,384 x 36 IDT72V3693.
32,768 x 36 IDT72V36103.
65,536 x 36 Clock frequencies up to 100 MHz (6.5 ns access time) Clocked FIFO buffering data from Port A to Port B IDT Standard timing (using EF and FF) or First Word Fall Through Timing (using OR and IR flag functions) Programmable Almost-Empty and Almost-Full flags; each has five default offsets (8, 16, 64, 256.
