IDT72V3694, IDT72V36104 - 3.3 VOLT CMOS SyncBiFIFO

Integrated Device Technology

📥 Download Datasheet

IDT72V3694 Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT72V3694, IDT72V36104. Please refer to the document for exact specifications by model.

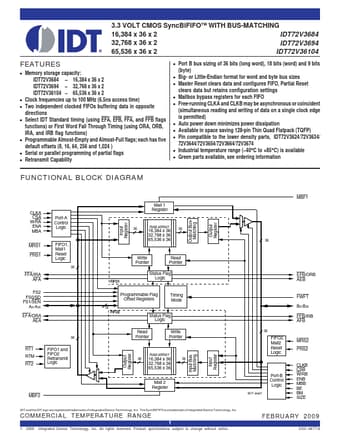

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IDT72V3694, IDT72V36104
Manufacturer	Integrated Device Technology
File Size	338.26 KB
Description	3.3 VOLT CMOS SyncBiFIFO
Datasheet	IDT72V36104_IntegratedDeviceTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: IDT72V3694, IDT72V36104. Please refer to the document for exact specifications by model.

IDT72V3694 Product details

Description

The IDT72V3684/72V3694/72V36104 are designed to run off a 3.3V supply for exceptionally low-power consumption.

Features

Memory storage capacity: IDT72V3684.
16,384 x 36 x 2 IDT72V3694.
32,768 x 36 x 2 IDT72V36104.
65,536 x 36 x 2.
Clock frequencies up to 100 MHz (6.5ns access time).
Two independent clocked FIFOs buffering data in opposite directions.
Select IDT Standard timing (using EFA, EFB, FFA, and FFB flags functions) or First Word Fall Through Timing (using ORA, ORB, IRA, and IRB flag functions).
Programmable Almost-Empty and Almost-Fu.
