IDT72V3690 Datasheet - Integrated Device Tech

IDT72V3690, CMOS FIFO memories

3.3 VOLT HIGH-DENSITY SUPERSYNC™ II 36-BIT FIFO 1,024 x 36, 2,048 x 36 4,096 x 36, 8,192 x 36 16,384 x 36, 32,768 x 36 65,536 x36, 131,072 x 36 IDT7.
The IDT72V3640/72V3650/72V3660/72V3670/72V3680/72V3690/ 72V36100/72V36110 are exceptionally deep, high speed, CMOS First-InFirst-Out (FIFO) memories.

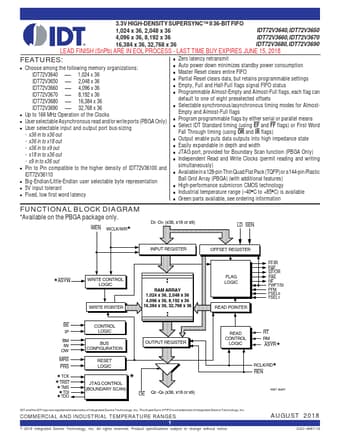

datasheet Preview Page 1 from Datasheet4u.com

IDT72V3690_IntegratedDeviceTechnology.pdf

IDT72V3690 Datasheet Preview — Preview of IDT72V3690 PDF

Datasheet Details

Part number:

IDT72V3690

Manufacturer:

Integrated Device Tech

File Size:

290.68 KB

Description:

CMOS FIFO memories

Features

* Choose among the following memory organizations:Commercial IDT72V3640  1,024 x 36 IDT72V3650  2,048 x 36 IDT72V3660  4,096 x 36 IDT72V3670  8,192 x 36 IDT72V3680  16,384 x 36 IDT72V3690  32,768 x 36 IDT72V36100  65,536 x 36 IDT72

Applications

* that need to buffer large amounts of data and match busses of unequal sizes. Each FIFO has a data input port (Dn) and a data output port (Qn), both of which can assume either a 36-bit, 18-bit or a 9-bit width as determined by the state of external control pins Input Width (IW), Output Width (OW), an
