IDT72V3696, IDT72V36106 - 3.3 VOLT CMOS TRIPLE BUS SyncFIFO

Integrated Device Technology

📥 Download Datasheet

IDT72V3696 Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT72V3696, IDT72V36106. Please refer to the document for exact specifications by model.

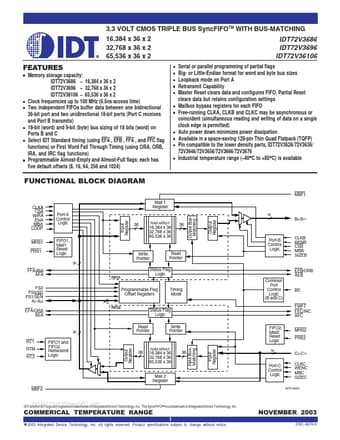

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IDT72V3696, IDT72V36106
Manufacturer	Integrated Device Technology
File Size	403.25 KB
Description	3.3 VOLT CMOS TRIPLE BUS SyncFIFO
Datasheet	IDT72V36106_IntegratedDeviceTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: IDT72V3696, IDT72V36106. Please refer to the document for exact specifications by model.

IDT72V3696 Product details

Description

The IDT72V3686/72V3696/72V36106 are designed to run off a 3.3V supply for exceptionally low-power consumption.

Features

ES.
Memory storage capacity: IDT72V3686.
16,384 x 36 x 2 IDT72V3696.
32,768 x 36 x 2 IDT72V36106.
65,536 x 36 x 2 Clock frequencies up to 100 MHz (6.5ns access time) Two independent FIFOs buffer data between one bidirectional 36-bit port and two unidirectional 18-bit ports (Port C receives and Port B transmits) 18-bit (word) and 9-bit (byte) bus sizing of 18 bits (word) on Ports B and C Select IDT Standard.
