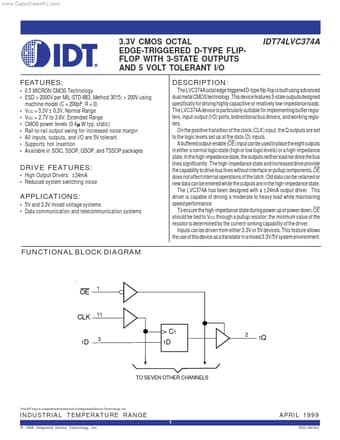

IDT74LVC374A - 3.3V CMOS OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOP
FUNCTIONAL BLOCK DIAGRAM OE 1 CLK 11 C1 1D 3 1D 2 1Q TO SEVEN OTHER CHANNELS The IDT logo is a registered trademark of Integrated Device Technology, Inc.
INDUSTRIAL TEMPERATURE RANGE 1 © 1999 Integrated Device Technology, Inc.
APRIL 1999 DSC-4618/2 IDT74LVC374A 3.3V CMOS OCTAL EDGE-TRI
www.DataSheet4U.com IDT74LVC374A 3.3V CMOS OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOP INDUSTRIAL TEMPERATURE RANGE 3.3V CMOS OCTAL EDGE-TRIGGERED D-TYPE FLIPFLOP WITH 3-STATE OUTPUTS AND 5 VOLT TOLERANT I/O 0.5 MICRON CMOS Technology ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) VCC = 3.3V ± 0.3V, Normal Range VCC = 2.7V to 3.6V, Extended Range CMOS power levels (0.4µ W typ.
static) Rail-to-rail o
IDT74LVC374A Features
* DRIVE FEATURES:
* High Output Drivers: ±24mA
* Reduced system switching noise APPLICATIONS:
* 5V and 3.3V mixed voltage systems
* Data communication and telecommunication systems The LVC374A octal edge triggered D-type flip-flop is built using advanced dual meta
