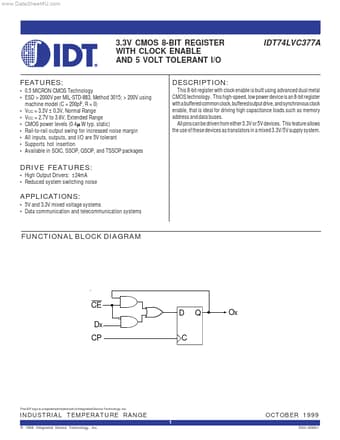

IDT74LVC377A Datasheet, Register, Integrated Device Technology

IDT74LVC377A Features

• Register DESCRIPTION: IDT74LVC377A
• 0.5 MICRON CMOS Technology
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V

PDF File Details

Part number:

IDT74LVC377A

Manufacturer:

Integrated Device Technology

File Size:

90.28kb

Download:

📄 Datasheet

Description:

3.3v cmos 8-bit register. IDT74LVC377A

IDT74LVC377A Application

• Applications
• 5V and 3.3V mixed voltage systems
• Data communication and telecommunication systems FUNCTIONAL BLOCK DIAGRAM CE
