IDT74LVC823A 3.3V CMOS 9-BIT BUS-INTERFACE FLIP-FLOP WITH 3-STATE OUTPUTS AND 5 VOLT TOLERANT I/O

FUNCTIONAL BLOCK DIAGRAM OE CLR CLKEN 1 11 14 CLK 1D 13 2 R C1 1D 23 1Q TO EIGHT OTHER CHANNELS DataSheet4U.com The IDT logo is a registered trademark of Integrated Device Technology, Inc. INDUSTRIAL TEMPERATURE RANGE 1 © 2004 Integrated Device Technology, Inc. JANUARY 2004 DSC-4608/2 .

www.DataSheet4U.com IDT74LVC823A 3.3V CMOS 9-BIT BUS-INTERFACE FLIP-FLOP INDUSTRIAL TEMPERATURE RANGE 3.3V CMOS 9-BIT BUS-INTERFACE FLIP-FLOP WITH 3-STATE OUTPUTS AND 5 VOLT TOLERANT I/O 0.5 MICRON CMOS Technology ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) VCC = 3.3V ± 0.3V, Normal Range VCC = 2.7V to 3.6V, Extended Range CMOS power levels (0.4µ W typ. static) Rail-to-rail output swing for.

IDT74LVC823A Features

* DRIVE FEATURES:

* High Output Drivers: ±24mA

* Reduced system switching noise APPLICATIONS:

* 3.3V high speed systems

* 3.3V and lower voltage computing systems The LVC823A 9-bit bus-interface flip-flop is built using advanced dual metal CMOS technology. The LVC

IDT74LVC823A Datasheet (139.96 KB)

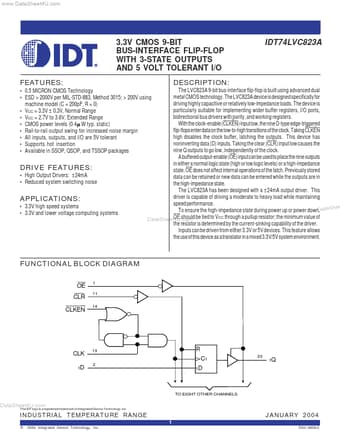

IDT74LVC823A Datasheet Preview — Preview of IDT74LVC823A PDF

Datasheet Details

Part number:

IDT74LVC823A

Manufacturer:

Integrated Device Technology

File Size:

139.96 KB

Description:

3.3v cmos 9-bit bus-interface flip-flop with 3-state outputs and 5 volt tolerant i/o.
