IDTCV105E Datasheet - Integrated Device Technology

CLOCK GENERATOR

IDTCV105E Features

* 4 PLL architecture

* Linear frequency programming

* Independent frequency programming and SSC control

* Band-gap circuit for differential output

* High power-noise rejection ratio

* 66MHz to 533MHz CPU frequency

* VCO frequency up to 1.1G

IDTCV105E General Description

IDTCV105E is a 48 pin clock generation device for desktop PC platforms. This chip incorporates four PLLs to allow independent generation of CPU, AGP/ PCI, SRC, and 48MHz clocks. The dedicated PLL for Serial ATA clock provides high accuracy frequency. This device also implements Band-gap referenced .

IDTCV105E Datasheet (111.94 KB)

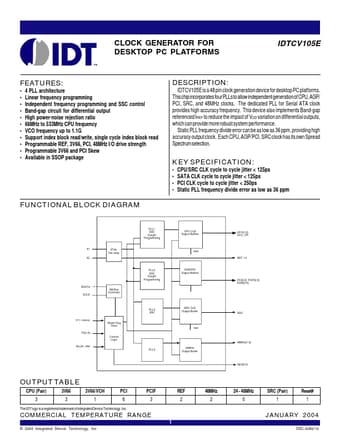

IDTCV105E Datasheet Preview — Preview of IDTCV105E PDF

Datasheet Details

Part number:

IDTCV105E

Manufacturer:

Integrated Device Technology

File Size:

111.94 KB

Description:

Clock generator.
