IDTQS34XVH2245 - 2.5V / 3.3V 32-BIT HIGH BANDWIDTH BUS SWITCH

IDTQS34XVH2245 Description

IDTQS34XVH2245 2.5V / 3.3V 32-BIT HIGH BANDWIDTH BUS SWITCH INDUSTRIAL TEMPERATURE RANGE QUICKSWITCH® PRODUCTS 2.5V / 3.3V 32-BIT HIGH BANDWIDTH BUS.

IDTQS34XVH2245 Features

* N channel FET switches with no parasitic diode to VCC
* Isolation under power-off conditions
* No DC path to VCC or GND
* 5V tolerant in OFF and ON state
* 5V tolerant I/Os
* Flat RON characteristics over operating range
* Rail-to-rail switc

IDTQS34XVH2245 Applications

* Hot-swapping
* Low distortion analog switch
* Replaces mechanical relay
* ATM 25/155 switching FUNCTIONAL BLOCK DIAGRAM A0 A1 A2 A3

📥 Download Datasheet

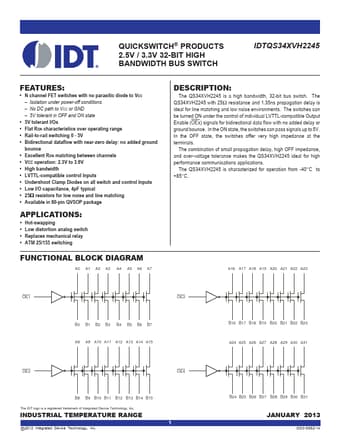

Preview of IDTQS34XVH2245 PDF
datasheet Preview Page 2 datasheet Preview Page 3
