IDTQS32X2384 Datasheet - Integrated Device Technology

IDTQS32X2384 HIGH-SPEED CMOS 20-BIT BUS SWITCH

The QS32X2384 provides a set of twenty high-speed CMOS TTLcompatible bus switches. The QS32x2384 also includes internal 25Ω series termination resistors to reduce reflection noise in high-speed applications. The Bus Enable (BE) signals turn the switches on. Four Bus Enable signals are provided, one.

IDTQS32X2384 Features

* Enhanced N channel FET with no inherent diode to VCC

* Low propagation delay and zero ground bounce

* 25Ω resistors for low noise

* Undershoot Clamp Diodes on all switch and control Inputs

* Four enables control five bits each

* TTL-compatible input

IDTQS32X2384-IntegratedDeviceTechnology.pdf

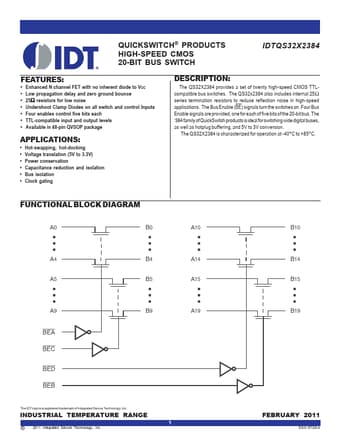

Preview of IDTQS32X2384 PDF
IDTQS32X2384 Datasheet Preview Page 2 IDTQS32X2384 Datasheet Preview Page 3

Datasheet Details

Part number:

IDTQS32X2384

Manufacturer:

Integrated Device Technology

File Size:

210.68 KB

Description:

High-speed cmos 20-bit bus switch.
