IDTQS32X384 - HIGH-SPEED CMOS 20-BIT BUS SWITCH

IDTQS32X384 Description

IDTQS32X384 HIGH-SPEED CMOS 20-BIT BUS SWITCH INDUSTRIAL TEMPERATURE RANGE QUICKSWITCH® PRODUCTS HIGH-SPEED CMOS 20-BIT BUS SWITCH IDTQS32X384 FEA.
The QS32X384 provides a set of twenty high-speed CMOS TTLcompatible bus switches.

IDTQS32X384 Features

* Enhanced N channel FET with no inherent diode to VCC 5Ω bidirectional switches connect inputs to outputs Zero propagation delay Zero ground bounce Undershoot clamp diodes on all switch and control pins Four enables con

IDTQS32X384 Applications

* Hot-swapping, hot-docking Voltage translation (5V to 3.3V) Power conservation Capacitance reduction and isolation Bus isolation Clock gating FUNCTIONAL BLOCK DIAGRAM A0 B0 A10 B10 A4 A5 B4 B5 A14 A15 B14 B15 A9 B9 A19 B19 BEA BE

📥 Download Datasheet

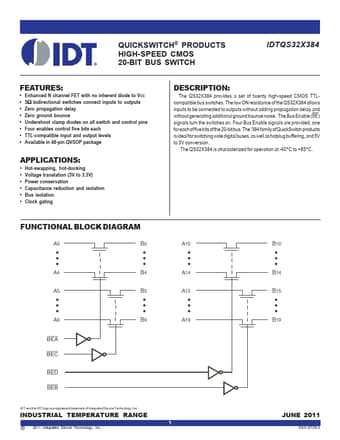

Preview of IDTQS32X384 PDF
