IDTQS32X2245 HIGH-SPEED CMOS QUICKSWITCH DOUBLE-WIDTH BUS SWITCH

The QS32X2245 provides a set of 16 high-speed CMOS TTL-compatible bus switches in a flow-through pinout. The QS32X2245 includes internal 25Ω resistors to reduce reflection noise in high speed applications. The Output Enable (OEn) signals turn the switches on similar to the OEn signal of the 74'245..

IDTQS32X2245 Features

* Enhanced N channel FET with no inherent diode to Vcc

* Dual '245 function

* 25Ω resistor for low noise

* Low propagation delay, zero ground bounce

* Undershoot clamp diodes on all switch and control inputs

* TTL-compatible control inputs

* A

IDTQS32X2245-Renesas.pdf

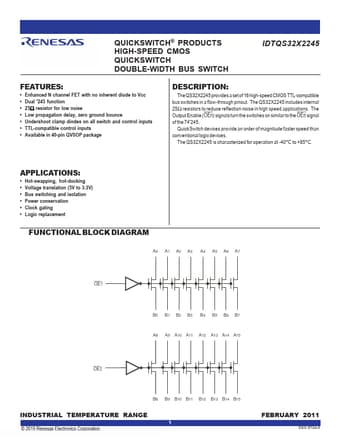

Preview of IDTQS32X2245 PDF
IDTQS32X2245 Datasheet Preview Page 2 IDTQS32X2245 Datasheet Preview Page 3

Datasheet Details

Part number:

IDTQS32X2245

Manufacturer:

Renesas ↗

File Size:

352.40 KB

Description:

High-speed cmos quickswitch double-width bus switch.
