IDTQS3390 Datasheet, Multiplexer, Renesas

IDTQS3390 Features

  • Multiplexer
  • Enhanced N channel FET with no inherent diode to Vcc
  • 16:8 multiplexer function with zero delay
  • 5Ω bidirectional switches connect inputs to outputs

PDF File Details

Part number:

IDTQS3390

Manufacturer:

Renesas ↗

File Size:

214.35kb

Download:

📄 Datasheet

Description:

High-speed cmos quickswitch 16:8 multiplexer. The QS3390 provides a 16:8 multiplexer logic switch. The low ON resistance (5Ω) of the QS3390 allows inputs to be connected to the o

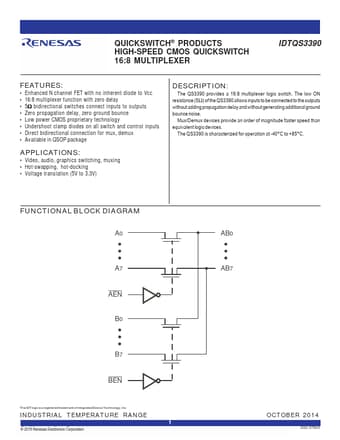

Datasheet Preview: IDTQS3390 📥 Download PDF (214.35kb)
Page 2 of IDTQS3390 Page 3 of IDTQS3390

IDTQS3390 Application

  • Applications
  • Video, audio, graphics switching, muxing
  • Hot-swapping, hot-docking
  • Voltage translation (5V to 3.3V) DES
