IDTQS32X245 - HIGH-SPEED CMOS QUICKSWITCH DOUBLE-WIDTH BUS SWITCH

IDTQS32X245 Description

IDTQS32X245 HIGH-SPEED CMOS QUICKSWITCH DOUBLE-WIDTH BUS SWITCH QUICKSWITCH® PRODUCTS HIGH-SPEED CMOS QUICKSWITCH DOUBLE-WIDTH BUS SWITCH INDUSTRIAL .
The QS32X245 provides a set of 16 high-speed CMOS TTL-compatible bus switches in a flow-through pinout.

IDTQS32X245 Features

* Enhanced N channel FET with no inherent diode to Vcc
* 5Ω bidirectional switches connect inputs to outputs
* Dual '245 function
* Zero propagation delay, zero ground bounce
* Undershoot clamp diodes on all switch and control inputs
* TTL-compatible

IDTQS32X245 Applications

* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Bus switching and isolation
* Power conservation
* Clock gating

📥 Download Datasheet

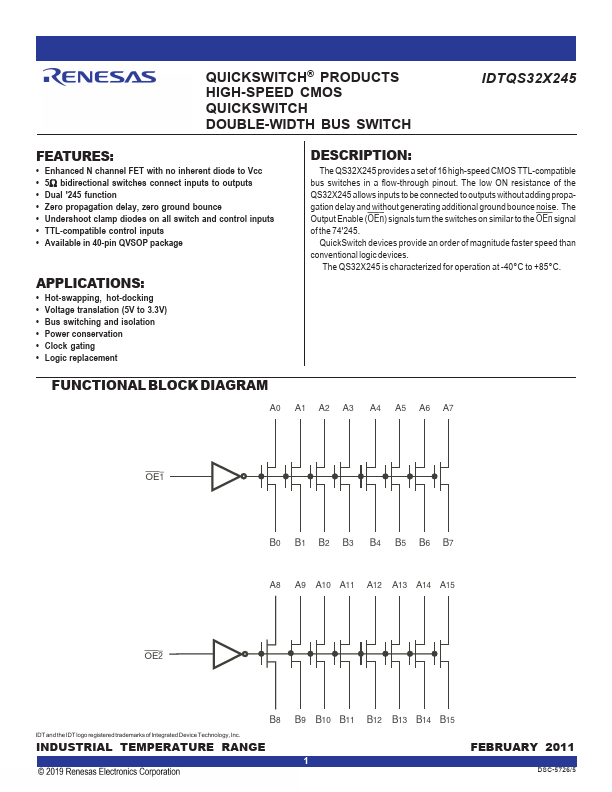

Preview of IDTQS32X245 PDF

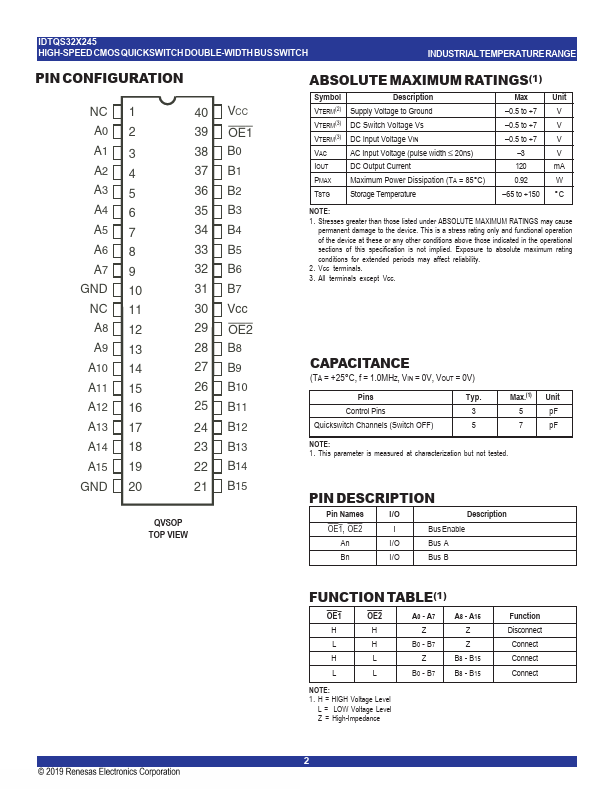

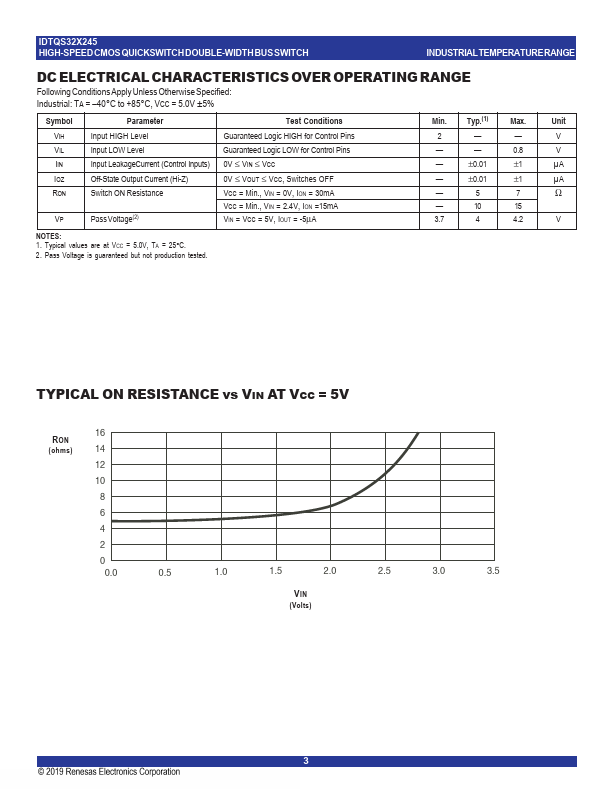

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IDTQS32X245
Manufacturer
Renesas ↗
File Size
340.77 KB
Datasheet
IDTQS32X245-Renesas.pdf
Description
HIGH-SPEED CMOS QUICKSWITCH DOUBLE-WIDTH BUS SWITCH
