IDTQS3384 - HIGH-SPEED CMOS 10-BIT BUS SWITCH

IDTQS3384 Description

IDTQS3384 HIGH-SPEED CMOS 10-BIT BUS SWITCH QUICKSWITCH® PRODUCTS HIGH-SPEED CMOS 10-BIT BUS SWITCH INDUSTRIAL TEMPERATURE RANGE IDTQS3384 .
The QS3384 provides a set of ten high-speed CMOS, TTL-compatible bus switches.

IDTQS3384 Features

* Enhanced N channel FET with no inherent diode to Vcc
* 5Ω bidirectional switches connect inputs to outputs
* Zero propagation delay, zero added ground bounce
* Undershoot clamp diodes on all switch and control inputs
* Two enables control five bits each

IDTQS3384 Applications

* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Power Conservation
* Capacitance reduction and isloation
* Bus Isolation
* Clock Gating FUNCTIONAL BLOCK DIAGRAM A0 B0 A4 B4 A5 B5 A9 BEA BEB The IDT logo is a registered trademar

📥 Download Datasheet

Preview of IDTQS3384 PDF

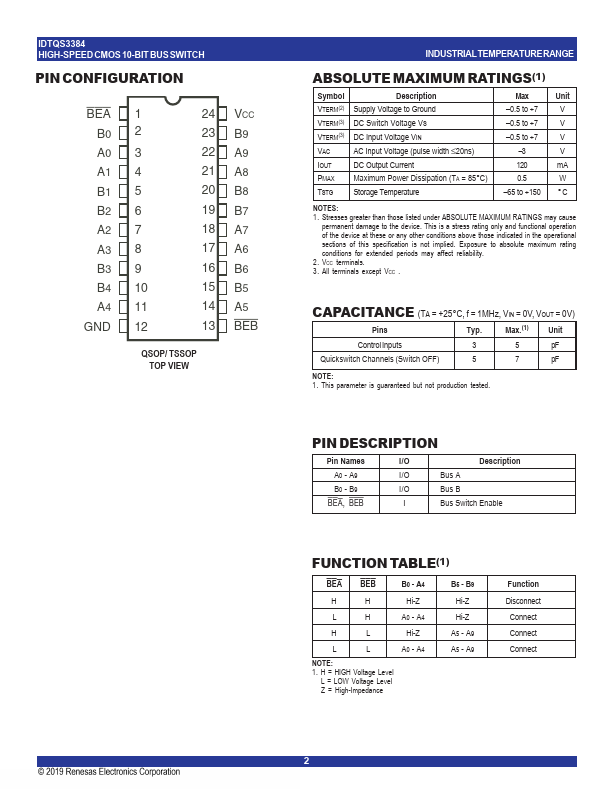

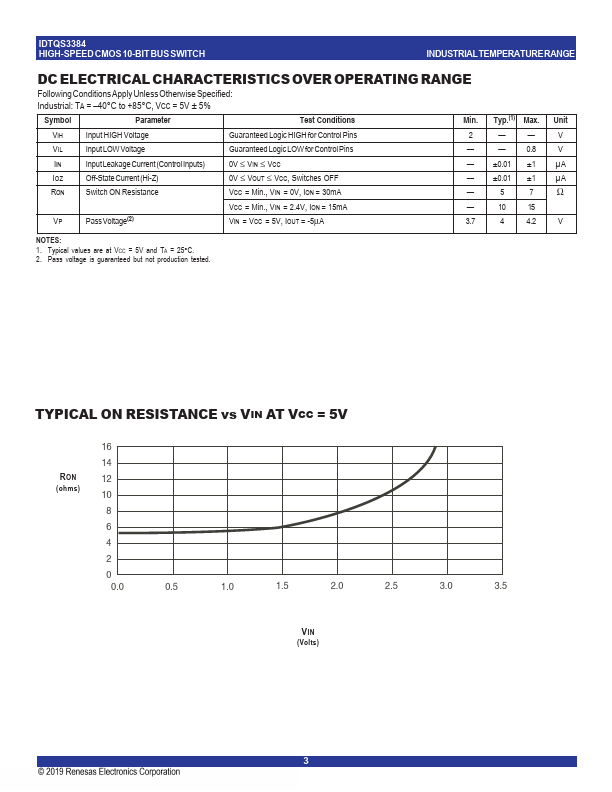

datasheet Preview Page 2 datasheet Preview Page 3
