IDTQS33X253 Datasheet - Integrated Device

IDTQS33X253 QUICKSWITCH PRODUCTS HIGH-SPEED CMOS QUICKSWITCH MULTIWIDTH 24:6 MUX/DEMUX

The QS33X253 is a high-speed CMOS 24:6 (3, dual 4:1) multiplexer/ demultiplexer. The QS33X253 is a member of the MultiWidth™ family and is functionally compatible to three of the QuickSwitch version of the 74F253, 74FCT253, and the 74ALS/AS/LS253 Dual 4:1 multiplexers. The low ON resistance of the .

IDTQS33X253 Features

* Enhanced N channel FET with no inherent diode to Vcc Bidirectional switches connect inputs to outputs 24:6 Mux/Demux switches Zero propagation delay, zero ground bounce Individual controls for each bank Undershoot clamp

IDTQS33X253_IntegratedDeviceTechnology.pdf

Preview of IDTQS33X253 PDF

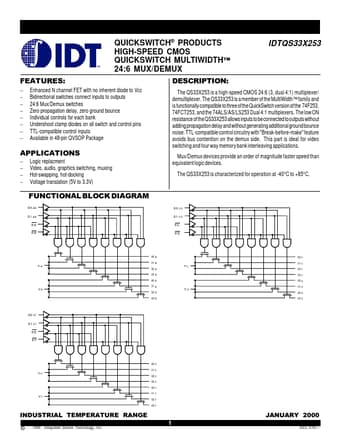

IDTQS33X253 Datasheet Preview Page 2 IDTQS33X253 Datasheet Preview Page 3

Datasheet Details

Part number:

IDTQS33X253

Manufacturer:

Integrated Device

File Size:

91.50 KB

Description:

Quickswitch products high-speed cmos quickswitch multiwidth 24:6 mux/demux.
