IDTQS3245 - HIGH-SPEED CMOS QUICKSWITCH 8-BIT BUS SWITCH

IDTQS3245 Description

IDTQS3245 HIGH-SPEED CMOS QUICKSWITCH 8-BIT BUS SWITCH QUICKSWITCH® PRODUCTS HIGH-SPEED CMOS QUICKSWITCH 8-BIT BUS SWITCH INDUSTRIAL TEMPERATURE RANG.
The QS3245 provides a set of eight high-speed CMOS TTL-compatible bus switches in a pinout compatible with 74FCT245, 74F245, 74ALS/AS/ LS245 8-bit tr.

IDTQS3245 Features

* Enhanced N channel FET with no inherent diode to Vcc
* 5Ω bidirectional switches connect inputs to outputs
* Pin compatible with the 74F245, 74FCT245, and 74FCT245T
* Low power CMOS proprietary technology
* Zero propagation delay, zero ground bounce

IDTQS3245 Applications

* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Power conservation
* Capacitance reduction and isolation
* Logic replacement (data processing)
* Clock gating
* Bus switching and isolation FUNCTIONAL BLOCK DIAGRAM A0 A1 A2 A3

📥 Download Datasheet

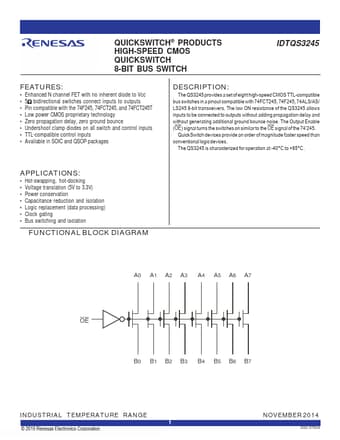

Preview of IDTQS3245 PDF
