IDTQS32245 Datasheet - Integrated Device

IDTQS32245 HIGH-SPEED CMOS QUICKSWITCH 8-BIT BUS SWITCH

The QS32245 provides a set of eight high-speed CMOS TTL-compatible bus switches in a pinout compatible with 74FCT245, 74F245, 74ALS/AS/ LS245 8-bit transceivers. The Output Enable (OE) signal turns the switches on similar to the OE signal of the 74’245. The QS32245 has 25Ω series resistors to reduc.

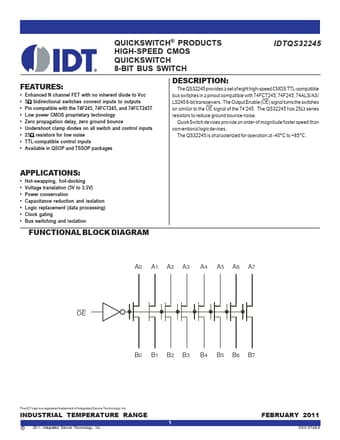

IDTQS32245 HIGH-SPEED CMOS QUICKSWITCH 8-BIT BUS SWITCH INDUSTRIAL TEMPERATURE RANGE QUICKSWITCH® PRODUCTS HIGH-SPEED CMOS QUICKSWITCH 8-BIT BUS SWITCH .EATURES: Enhanced N channel FET with no inherent diode to Vcc 5Ω bidirectional switches connect inputs to outputs Pin compatible with the 74F245, 74FCT245, and 74FCT245T Low power CMOS proprietary technology Zero propagation delay, zero ground bounce Unde.

IDTQS32245_IntegratedDeviceTechnology.pdf

Preview of IDTQS32245 PDF
IDTQS32245 Datasheet Preview Page 2 IDTQS32245 Datasheet Preview Page 3

Datasheet Details

Part number:

IDTQS32245

Manufacturer:

Integrated Device

File Size:

207.52 KB

Description:

High-speed cmos quickswitch 8-bit bus switch.
